A metal roof needs underlayment rated for sustained high heat, typically a high-temperature synthetic sheet across the field with a self-adhered, high-temp membrane at the eaves, valleys, and penetrations. Skip the heat rating and you risk the adhesive failing or the sheet degrading under a hot panel long before the metal itself wears out. Standing seam and exposed-fastener systems both need this hybrid approach, though the details shift slightly depending on how the panels attach.
TL;DR:
- A high-temperature synthetic underlayment with self-adhered membrane at eaves, valleys, and penetrations is essential for metal roofs to prevent adhesive failure under prolonged heat exposure.
- Felt underlayment is unsuitable due to its lower heat tolerance, shorter lifespan, and tendency to degrade or off-gas under dark-colored metal panels.
- Proper installation requires checking temperature ratings, fastener types, and overlaps, especially for venting strategies and climates with high heat or ice-damming risks.
- Using a hybrid approach that applies premium materials only at critical details while sealing the entire eave with high-temp peel-and-stick reduces costs and enhances durability.
- Expect high-temp synthetic or self-adhered membranes to last as long as the metal panels, typically several decades, unlike felt that deteriorates early.
Table of Contents
- Types of Underlayment for Metal Roof Systems
- Why Underlayment Matters More Than People Assume
- How to Choose the Right Underlayment for Your Roof
- Where Peel-and-Stick Goes and How Overlaps Should Work
- What Underlayment Actually Costs on a Metal Roof
- Our Take on Metal Roof Underlayment
- Get a Metal Roof Underlayment Plan Built for Your House
- Sources
- FAQ
Types of Underlayment for Metal Roof Systems
Not every underlayment belongs under metal panels, and the wrong choice fails quietly for years before it shows up as a stain on your ceiling.
Asphalt felt is the old standby, and it’s the one you want to avoid here. Felt softens, wrinkles, and can even off-gas under the heat that builds up beneath dark metal panels, and it tears easily during installation. It also has a shorter service life than synthetic alternatives, which matters when the panels above it are rated to last 40 to 70 years.
Synthetic mechanically fastened sheets are the modern field standard. These are woven or laminated polymer sheets, typically fastened with cap nails, that resist tearing and hold up to UV exposure during installation far better than felt. A smooth-surface synthetic is generally the better pick under standing seam systems because textured, granulated surfaces can abrade the sliding clips as panels expand and contract with temperature swings.
Self-adhered (peel-and-stick) membranes cost more but seal tightly around fasteners and flashing penetrations, which makes them the right call at leak-prone spots. Look specifically for high-temp variants, since standard peel-and-stick products formulated for shingles routinely fail under metal once panel temperatures climb.
- Felt: lowest cost, lowest heat tolerance, shortest lifespan
- Standard synthetic: moderate cost, better tear resistance, needs a temp rating check
- High-temp synthetic: field standard, rated 240°F to 260°F
- High-temp self-adhered: highest cost, best sealing at details, rated 250°F to 260°F
Why Underlayment Matters More Than People Assume
Underlayment isn’t decoration between the deck and the panels. It’s the roof’s second line of defense, and it’s the layer that actually stops water when wind drives rain sideways under a lapped seam or a fastener backs out over time.
It also manages condensation. Metal is a poor insulator on its own, and moisture forms on the underside of panels as temperatures swing between day and night. A properly rated underlayment, paired with adequate ventilation, keeps that moisture from reaching the deck.
There’s a noise and energy angle too, though it’s often oversold. Underlayment helps with sound dampening and thermal performance, but the real gains come from pairing it correctly with ventilation or battens, not from the membrane alone.
The temperature math is unforgiving: dark metal panels in direct sun can push underlayment surface temperatures well past what standard shingle-rated products can handle, which is why manufacturers and building codes generally require a rated underlayment for warranty validity and code compliance. Skip this step and you can void the very warranty you paid a premium for.
How to Choose the Right Underlayment for Your Roof
Work through this checklist before you sign off on a contractor’s proposal or pick a product yourself:
- Check the roof slope. Low-slope sections need broader self-adhered coverage; steeper slopes can rely more on synthetic in the field.
- Identify the panel attachment method. Standing seam systems favor a smooth synthetic to reduce clip friction; exposed-fastener panels need extra attention around every screw penetration.
- Factor in climate. Hot, sun-heavy regions demand the higher end of the temperature rating range; cold climates with ice-damming risk need self-adhered coverage at the eaves regardless of heat.
- Confirm ventilation strategy. A vented assembly changes moisture behavior compared to an unvented one, so underlayment choice should match the plan.
- Set a realistic budget. Decide upfront whether you’re paying for full self-adhered coverage or a hybrid approach with synthetic in the field.
On the product label, confirm the temperature rating (240°F minimum), the UV exposure window before panels must be installed, and compliance with relevant ASTM standards. With your contractor, confirm fastener type and spacing in writing.
Pro Tip: Ask your contractor to specify cap nails, not staples, and to name the exact fastener pattern in the contract. Incorrect fastening is one of the most common causes of underlayment failure in high-wind events, even when the material itself is top-shelf.
Where Peel-and-Stick Goes and How Overlaps Should Work
Placement matters as much as product selection, and this is where a lot of otherwise-good installations go wrong.
The standard layout puts self-adhered membrane at the eaves as an ice and water barrier, in the valleys where water concentrates, around every penetration (vents, chimneys, skylights), and often up sidewalls. On low-slope sections, some contractors run self-adhered material across the entire deck rather than risk it. Industry guidance increasingly favors this hybrid layout: self-adhered membrane where water can pool or wind can drive rain sideways, synthetic everywhere else.
- Eaves: high-temp self-adhered, extending past the projected ice line
- Valleys: high-temp self-adhered, full width
- Penetrations: self-adhered patches sealed tight around the base
- Field: mechanically fastened high-temp synthetic with cap nails
For the field synthetic, cap nails outperform staples because they spread load and resist pull-through. Only high-temp rated self-adhered products should sit under metal panels, since standard adhesives can soften or lose tack once panel temperatures climb past what they were formulated for.
Overlap rules matter too: side laps typically run 4 to 6 inches, end laps closer to 6 inches, and most synthetic sheets carry a UV exposure window (often 90 to 180 days) before panels must go on top. Leave synthetic exposed longer than the label allows and you’re gambling with material the manufacturer never tested for that condition.
What Underlayment Actually Costs on a Metal Roof
Material costs vary more than most homeowners expect, and the gap between the cheapest and best option is bigger than it looks on a bid.
- Felt: cheapest per square, but the performance gap makes it a poor trade-off under metal
- Standard synthetic: mid-range, works for lower-heat applications
- High-temp synthetic pricing varies roughly within a moderate range per square.
- High-temp self-adhered membrane pricing tends to be on the higher end per square.
Using self-adhered membrane only at details and synthetic across the field keeps installed costs well below running self-adhered over the entire deck, without sacrificing protection where it counts. Labor also affects the total: self-adhered products take longer to install correctly, which adds to labor cost regardless of the material price. Ask any contractor for the product spec sheet and a line-item breakdown rather than a single bundled number. That’s the only way to know whether you’re getting felt dressed up at synthetic pricing.

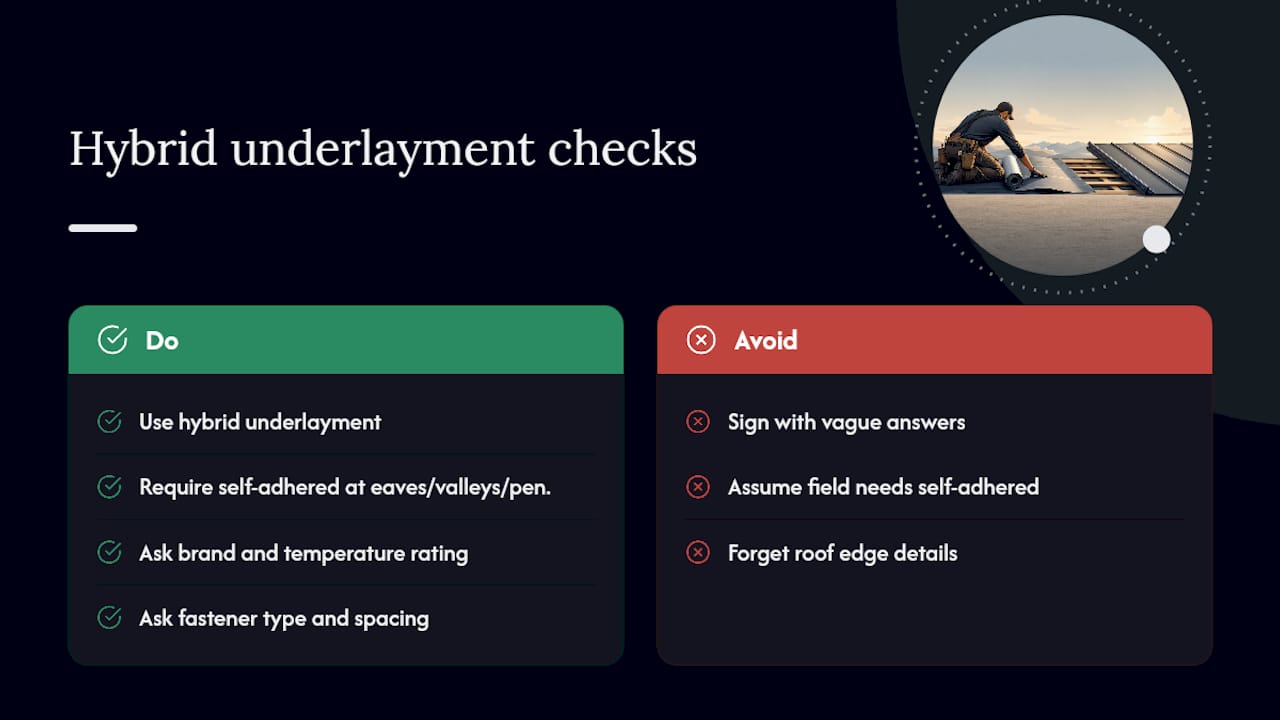

Our Take on Metal Roof Underlayment
We favor the hybrid approach for a simple reason: it puts the most expensive, best-performing material exactly where roofs actually fail, and lets a durable, more affordable synthetic do the job everywhere else. That’s not a compromise. It’s how the failure data on metal roofs breaks down. Leaks concentrate at valleys, penetrations, and eaves, not in the middle of a clean field run.
Our metal roofing installations across Central Florida follow this same logic, and it’s worth reading our notes on roof edge metal if you want to see how edge details tie into underlayment placement. Before you sign a contract, ask for the underlayment brand and temperature rating, the fastener type and spacing, and whether self-adhered membrane is included at every eave, valley, and penetration. If a contractor can’t answer those three questions clearly, keep looking.
— Results
Get a Metal Roof Underlayment Plan Built for Your House
We specify underlayment by the detail, not by the cheapest line item on a bid sheet. Homeowners in Central Florida deal with intense panel heat and sudden, wind-driven storms in the same season, which is exactly the combination that punishes underlayment cut corners.
We build every metal roof estimate around installation best practices that match code requirements and manufacturer warranty terms, not just what’s fastest to install. That means high-temp synthetic across the field, self-adhered membrane at every eave and valley, and cap nails in the pattern the manufacturer actually specifies. Homeowners planning solar additions should also loop in a licensed solar installer early, since roof penetrations for mounts need to be sealed before underlayment goes down. Request a free estimate and we’ll walk your roof, confirm slope and panel type, and give you a line-item quote that shows exactly which underlayment goes where.
Sources
- Metal roofing underlayment: high-temp, synthetic, felt — The Roofing Brief
- Does Metal Roofing Need Underlayment? Essential Guide To Metal Roof Underlayment In The U.S.
- Attachment requirements and the importance of proper fastening — MBCI blog
FAQ
Do You Need Underlayment Under a Metal Roof?
Yes. Underlayment acts as a secondary moisture barrier, and most manufacturers and building codes require it for warranty validity and code compliance.
Can I Put a Metal Roof Directly on Plywood?
You can attach metal panels to a plywood deck, but skipping underlayment leaves the deck exposed to condensation and wind-driven rain with no backup protection, and most warranties won’t cover a roof installed that way.
What Is the Best Underlayment to Use Under a Metal Roof?
A high-temp synthetic sheet across the field, combined with a high-temp self-adhered membrane at eaves, valleys, and penetrations, is the combination most manufacturers and roofing contractors recommend for durability and warranty compliance.
What Type of Underlayment Does Home Depot Offer for Metal Roofs?
Home Depot stocks a mix of standard and high-temperature synthetic underlayments along with self-adhered ice-and-water products, but availability varies by store, and it’s worth confirming the temperature rating on the label before buying, since not every product sold there is rated for metal panel heat.
How Long Does Underlayment Last Under a Metal Roof?
A quality high-temp synthetic or self-adhered membrane, properly installed, generally lasts as long as the panels above it, often several decades, while felt tends to degrade well before the metal roof’s expected service life ends.
